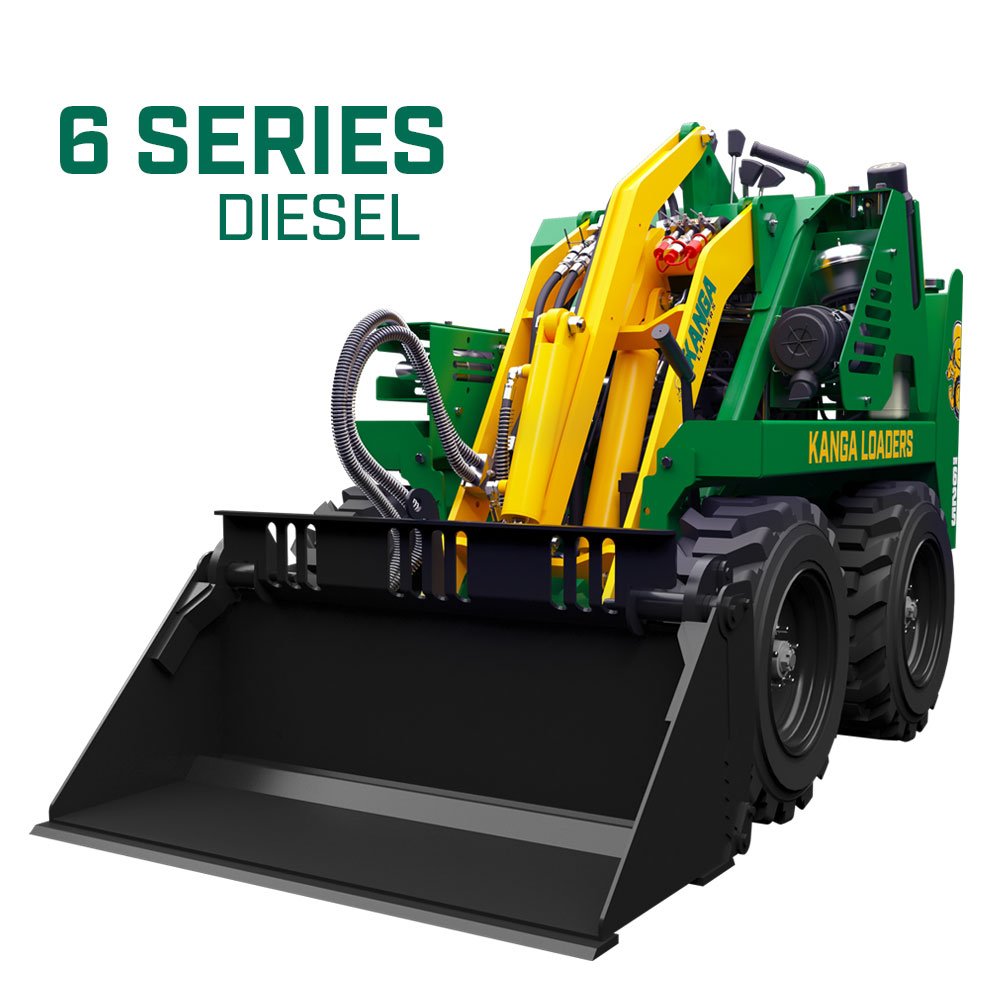

KANGA KEY FEATURES
| Engine : | Kubota |
| Engine Model : | 25hp D902-E |
| Lift Capacity : | 250kg |
| Fuel Capacity : | 45L |
| Operating Weight : | 972kg |
| Bucket Maximum Rollback : | 40degrees |
| Maximum Operating Height : | 2500mm |
| Overall Height : | 1340mm |
| Overall Length : | 2 200mm |
| Overall Wheel Width : | 1 030mm |
| Ground Clearance : | 185mm |
| Travel Speed : | 7.5km / hr |
| Drive / Operating System : | Soft Touch Hand Levers |
| Gear Pump Displacement : | 12.5cc / rev |
| Pump Output : | 45.0L / min |
| Hydraulic Reservoir Capacity : | 70.0L |
| System Pressure : | 220.0bars |
| Departure Angle : | 40degrees |
| Hydraulic Wheel Motors : | 4 |
| Wheel Rim Size : | 23inch |
- Self Levelling Bucket
Kanga’s buckets ensure safe,fast, easy operation without the danger of load spillage
over the operator – making it the only Mini Loader in today’s market with this feature. - Bucket Roll Back
Kanga’s better bucket design makes it easier to capture a full load and minimizes
spillage while travelling. Excellent roll back and dump angles make filling the bucket
fast, easy and efficient. Travelling safely with the bucket fully lowered at the lowest centre
of gravity (with the arms fully against the machine chassis) allows quicker cycle times. - Machine Balance
Superior design enables loader to remain balanced either fully loaded or bucket
removed. - Oil Safety Cutout Switch – Petrol only
- Auto Auxiliary Cut Out
Larger operator platform, wider stance for improved safety and fatigue reduction
– Shuts down auxiliary power should operator leave machine. - Safety Relief Valve
Prevents operator from overloading the machine. - Simple Controls & Ergonomic Design
Kanga’s soft touch controls are smoother to use – this enables the operator to
reach less and be more productive. The simple and easy to understand controls
help minimise operator fatigue. - Enclosed hydraulic wheel motors
Prevent damage, yet easily accessible. - Four Hi-torque hydraulic wheel motors
Giving you increased performance when breaking ground and trenching. - No Counter Weights
Best design by industry standards. Excellent weight distribution improves
ground penetration and digging through the elimination of rear counterweights.
(The use of counterweights reduces downward cutting pressure at the cutting
edge, severely limiting digging ability bucket and post hole work). - Rupture Resistant Fuel Tanks
Twin long range (50L), heavy gauge steel fuel tanks allow up to 3 days operation
and less re-fuelling down time. - Long Life Linkage Pins
Greasable pins with hardened steel bushes.
